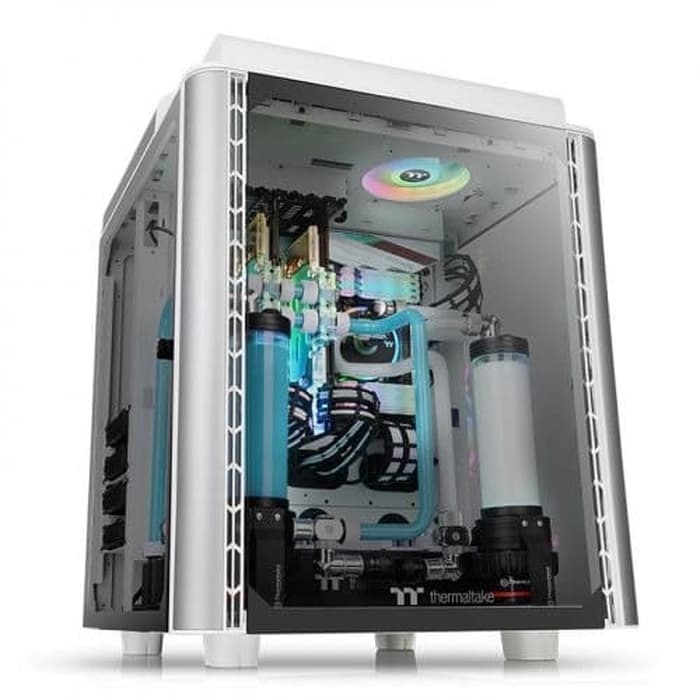

THERMALTAKE Level 20 HT Snow Edition

P/N : CA-1P6-00F6WN-00
Series : Level 20
Model : Level 20 HT Snow
CASE TYPE : Full Tower
Dimension (H x W x D)
613 x 468 x 503 mm
(24.13 x 18.43 x 19.8 inch)
Net Weight : 20.38 kg / 44.93 lb
SIDE PANEL : 4 x Tempered Glass (4mm thickness)
Color : Exterior & Interior : White
MATERIAL : SPCC
COOLING SYSTEM
Top (exhaust) :
2 x 140 x 140 x 25 mm Turbo fan
(1000rpm, 16dBA)
Drive Bays
-Accessible
4 x 3.5’’ or 2.5’’ (With HDD Cage)
-Hidden
1 x 2.5’’ (With HDD Bracket)
EXPANSION SLOTS : 8
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX) , 12” x 13” (E-ATX)
I/O Port : 1 x Type-C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD Audio
PSU : Standard PS2 PSU (optional)
FAN SUPPORT
-Left / Right Side:
3 x 120mm , 2 x 140mm
-Top:
2 x 120mm , 2 x 140mm
-Rear:
2 x 120mm , 2 x 140mm
-Bottom:
3 x 120mm
RADIATOR SUPPORT
-Left / Right Side :
1 x 360mm , 1 x 280mm
-Bottom:
1 x 360mm
CLEARANCE :
-CPU cooler height limitation: 260mm
-VGA length limitation: 400mm
-PSU length limitation: 200mm
