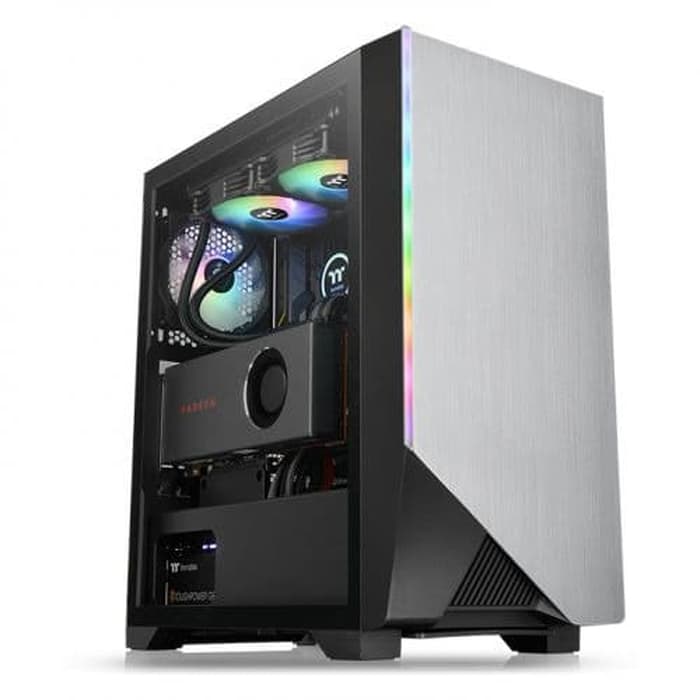

Thermaltake H550 TG ARGB Mid-Tower Chassis

P/N : CA-1P4-00M1WN-00
Series : H Series
Model : H550 TG ARGB
CASE TYPE : Middle tower
Dimension (H x W x D)
441 x 225 x 472 mm
(17.36 x 8.85 x 18.58 inch)
Net Weight : 7.65 kg / 16.87 lb
SIDE PANEL : 4mm Tempered Glass x1
Color : Exterior & Interior : Black
MATERIAL : SPCC
COOLING SYSTEM
-Rear (exhaust) :
1 x 120 x 120 x 25mm Addressable RGB fan
(1000rpm, 27.2 dBA)
Drive Bays
-Accessible
2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)
-Hidden : –
EXPANSION SLOTS : 7+2
MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port : USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1
PSU : Standard PS2 PSU (optional)
FAN SUPPORT
-Front:
3 x 120mm, 2 x 140mm
-Top:
2 x 120mm, 2 x 140mm
-Rear:
1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
Front : 1 x 280mm, 1 x 360mm
Top : 1 x 240mm
Rear : 1 x 120mm
CLEARANCE
-CPU cooler height limitation : 165mm
-PSU length limitation : 160mm(With HDD Rack)
200mm(Without HDD Rack)
-VGA length limitation : 300mm
-VGA width limitation(Vertically) : 45mm
-RAM height limitation : 40mm(With radiator series)
